| Parameter | Spesifikasi |
|---|---|

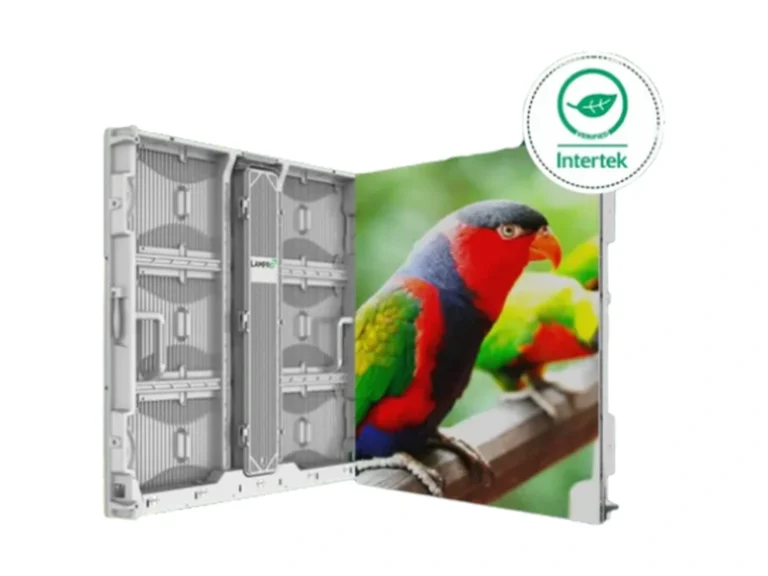

| Model katalog | STL 10 |
| Pixel Configuration | SMD2727 |
| Pixel Pitch (mm) | 10 mm |
| Pixel Matrix per Panel | 96×96 |
| Pixel Density (pixels/sq.m.) | 10000 |
| Cabinet Dimensions (W×H×D) (mm) | 960×960×91 |
| Module Dimensions (W×H) (mm) | 480×320 |
| Cabinet / Module Material | Die-casting cabinet & aluminum module |
| Cabinet Weight (kg/panel) | 25 kg |
| Color Grayscale (Bit) | 14bit |
| Refresh Rate (Hz) | 3840–7680 |
| Brightness (nits) | 6000–10000 |
| Contrast Ratio | 8400–40000:1 |
| AC Power Maximum (W/ ㎡) | 440–590 |
| AC Power Typical (W/㎡) | 146–196 |
| Working Temperature (°C) | -20 ~ 50 |
| IP Rating (Front/Rear) | IP66 / IP65 |
| Working Humidity (RH) | 10%–90% non-condensing |
| Lifetime Typical Value (hrs) | 100.000 Hours |
