| Parameter | Spesifikasi |
|---|---|

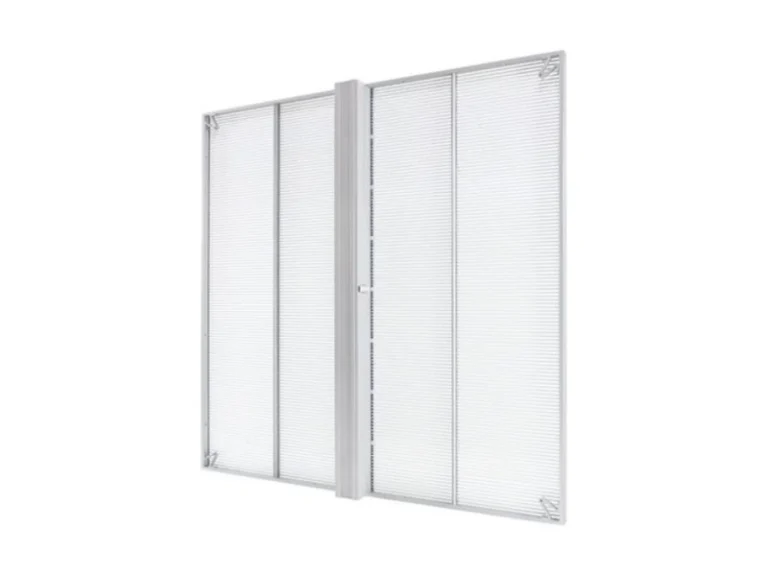

| Model katalog | AVS 10.4mm |
| Pixel Pitch | 10.4mm |
| LED lamp bead model | SMD2727 |
| Pixel composition | 1R1G1B |
| Module Size (W×H) | 500×125mm |
| Module Resolution (W×H) | 48×12 |
| Panel Size (W×H×D) | 1000×500/1000 |
| Panel Resolution (W×H) | 96×48/96 |
| Module Arrangement (W×H) | 2×4 / 2×8 |
| Density of Pixel (dots/m²) | 9216 |
| Transparency Rate | 80% |
| Panel Weight (kg/m²) | 8.1kg |
| Scan Method | 3 Scan |
| Refresh Rate | 3840Hz |
| Panel Material | Aluminum |
| Module/Panel Fixed Way | Front |
| Viewing Angle | 140° / 140° |
| Brightness | 1500–5000 CD |
| Gray Scale | 16 bits |
| Signal Input | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI |
| Maximum Power (W/m²) | 800 |
| Average Power (W/m²) | 240 |
| Operating Environment | -20°C ~ 60°C, 10% ~ 90% RH |
